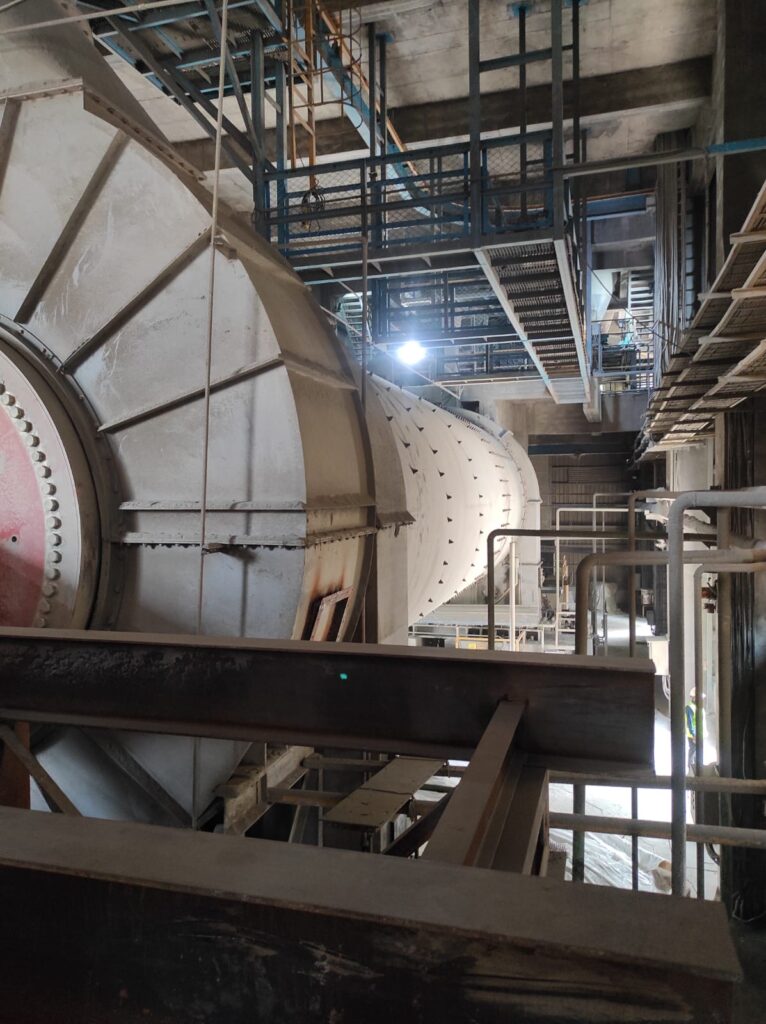

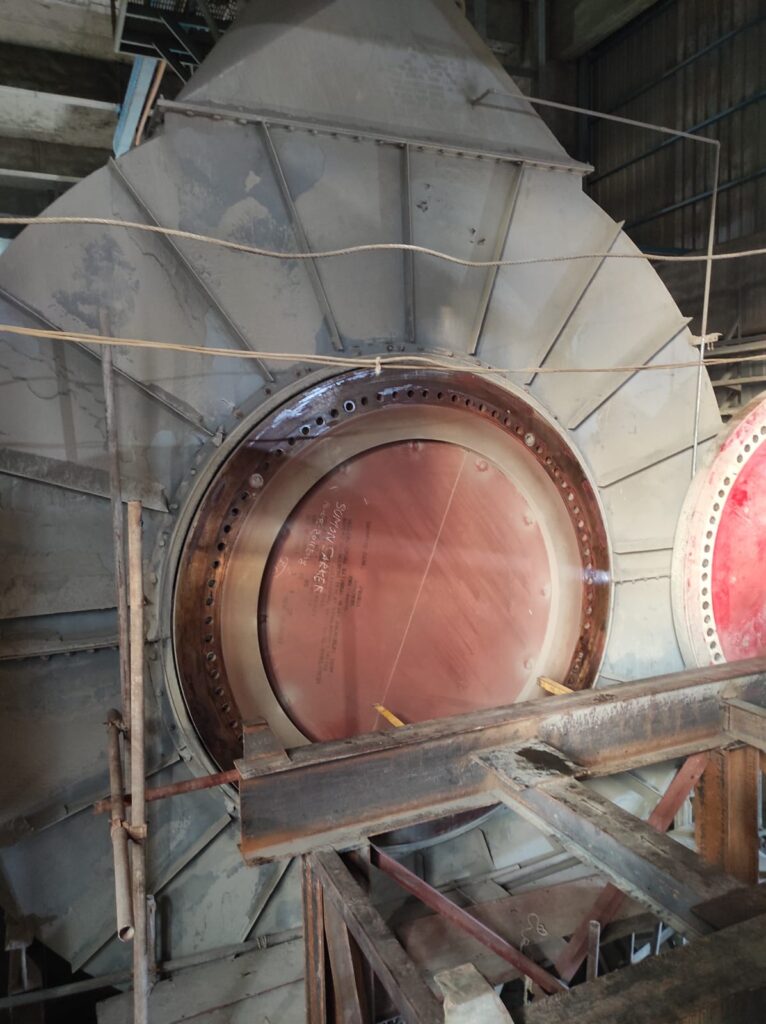

Ball Mill alignment work

Client: Ruby Cement

Location: Patenga, Chittagong

Ball Mill alignment work

  • Determining dynamic run-out at a gear station (axial and radial).
  • Specification of level of consumption of overlapping elements.

  •  Specification of non-alignment deviations in a vertical and horizontal plane in relation to a specific reference line.

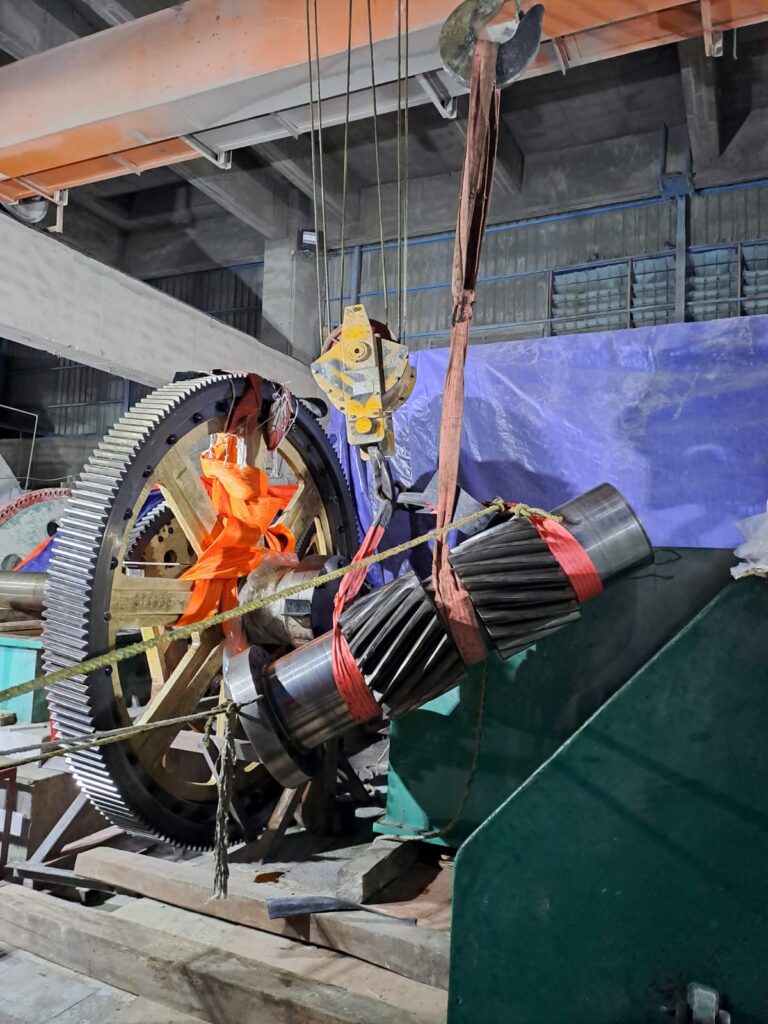

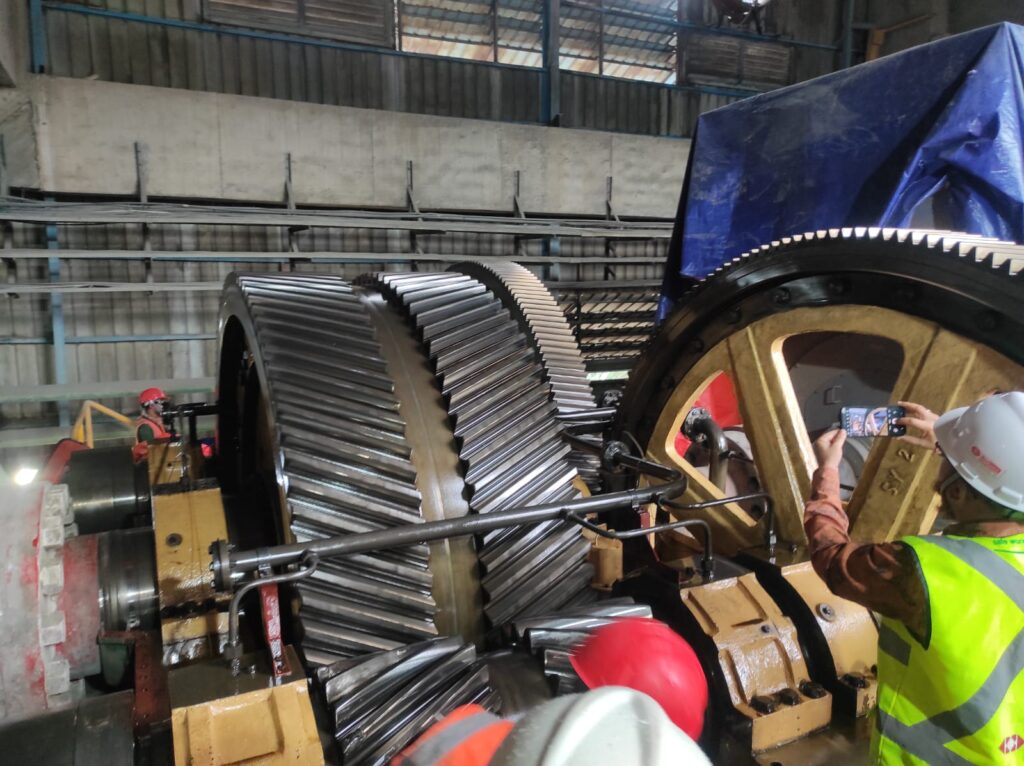

  • Proper placing of pinion(s) axis relative to the girth gear (drive wheel)—value of clearances between working teeth.

  • Alignment of clutch system, gears, gear boxes and drive motors regarding pinion’s and mill axes.

  • Determining the level of displacement of supports over time.
